Motherboard

Motherboard

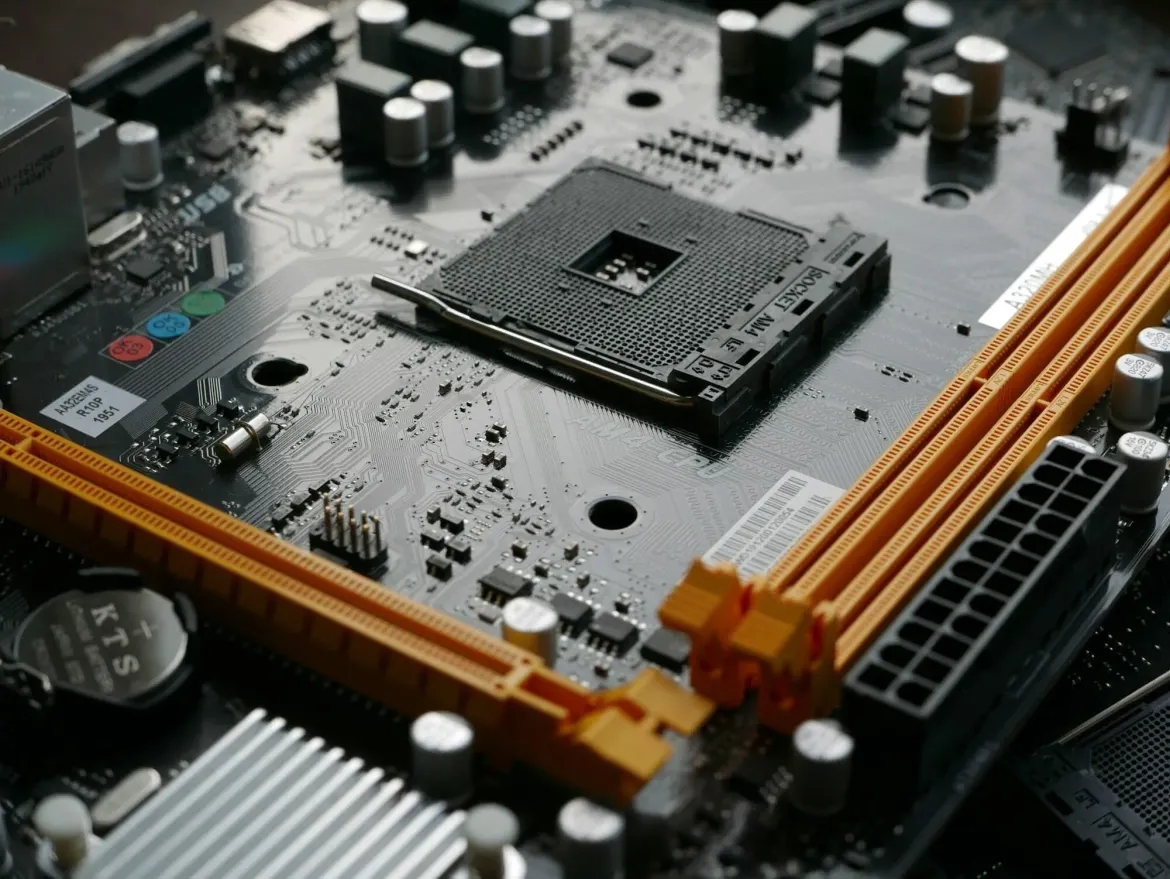

A motherboard is the main circuit board of a computer. It connects all the hardware components together and allows them to communicate with each other.

Think of the motherboard as the central highway system of a computer:

The CPU processes data.
The RAM stores active data.
The storage drive holds files.
The motherboard connects everything so they can work together.
Main Components of a Motherboard
1. CPU Socket
Holds the CPU (processor).
The socket type must match the CPU.
Examples: Intel LGA1700, AMD AM5.
2. RAM Slots (DIMM Slots)
Hold memory modules (RAM).
Most motherboards have 2 to 8 slots.
3. Chipset
Controls communication between the CPU, RAM, storage, and peripherals.
Modern examples:
Intel Z790, B760
AMD X670, B650
4. BIOS/UEFI Chip
Firmware that initializes hardware when the computer starts.
Performs the Power-On Self-Test (POST).
5. Expansion Slots (PCIe)

Used to install:

Graphics cards (GPU)
Network cards
Sound cards
Capture cards
6. Storage Connectors

Used to connect storage devices:

SATA ports for HDDs and SSDs
M.2 slots for NVMe SSDs
7. Power Connectors

Supply power from the power supply unit (PSU):

24-pin motherboard connector
4-pin, 8-pin, or 12-pin CPU power connector
8. USB Headers

Connect front-panel USB ports.

9. Front Panel Connectors

Connect:

Power button
Reset button
Power LED
Hard drive activity LED
10. Audio Connectors

Connect speakers, microphones, and front-panel audio ports.

11. Network Interface

Usually includes:

Ethernet port
Wi-Fi capability (on some models)
Motherboard Diagram (Simplified)
Plain Text
+-----------------------------------+
| CPU Socket |
| |
| RAM Slot 1 RAM Slot 2 |
| RAM Slot 3 RAM Slot 4 |
| |
| PCIe x16 (Graphics Card) |
| PCIe x1 |
| |
| M.2 SSD Slot |
| SATA Ports |
| |
| BIOS/UEFI Chip |
| Chipset |
+-----------------------------------+
Show more lines
Types of Motherboards
1. ATX (Advanced Technology Extended)
Standard desktop motherboard
Most common
Plenty of expansion slots

Typical Size: 12" × 9.6"

Best for:

Gaming PCs
Workstations
General desktops
2. Micro-ATX (mATX)
Smaller than ATX
Fewer expansion slots
Less expensive

Typical Size: 9.6" × 9.6"

Best for:

Budget PCs
Small office computers
3. Mini-ITX
Very compact
Usually one PCIe slot

Typical Size: 6.7" × 6.7"

Best for:

Small form factor PCs
Home theater PCs
4. Extended ATX (E-ATX)
Larger than standard ATX
Supports more RAM and expansion cards

Best for:

High-end gaming systems
Servers
Professional workstations
5. Server Motherboards

Designed for:

Data centers
Enterprise systems

Features:

Multiple CPUs
ECC RAM support
Remote management capabilities
Motherboard Form Factor Comparison
Type	Size	Expansion	Common UseE-ATX	Largest	Most	Servers, Workstations
ATX	Large	High	Gaming, Desktop
Micro-ATX	Medium	Moderate	Office, Home
Mini-ITX	Small	Limited	Compact PCs
For A+, Network+, and Security+ Exams

Remember these key points:

Motherboard = Main circuit board
CPU socket = Holds the processor
DIMM slots = Hold RAM
PCIe slots = Expansion cards
SATA/M.2 = Storage connections
BIOS/UEFI = Startup firmware
Chipset = Traffic controller between hardware components
